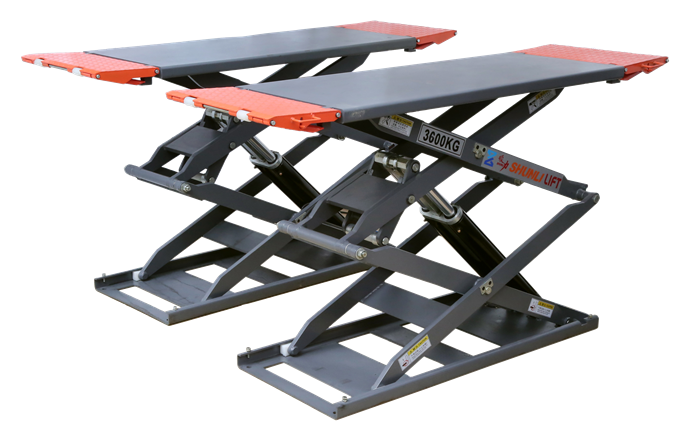

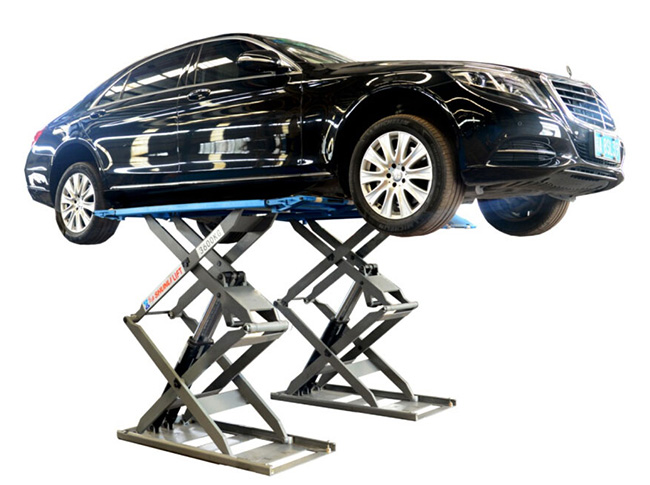

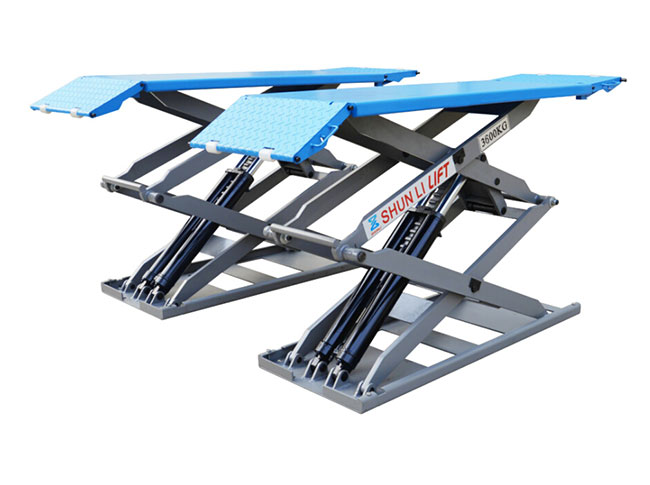

SHL-Y-J-36CBL Ultrathin Small Platform Scissor Lift(Heavy Duty Type)

    Product Features:

    ● Double level scissor lift,105mm above the ground at the lowest level

    ● Adopt Italy technology to design

    ● Double hydraulic balance system and mechanical safety with automatic unlock are equipped

    ● Alloy solid steel X structure, good rust resistance and not easy to deformation

    ● Shot blasting and high temperature baking powder coated surface finish



Share:

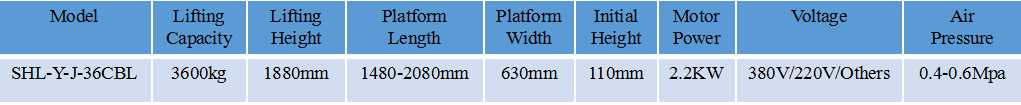

Specification:


Product Features:

● Double level scissor lift,105mm above the ground at the lowest level

● Adopt Italy technology to design

● Double hydraulic balance system and mechanical safety with automatic unlock are equipped

● 24V safety control circuit

● Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the  excellent finish and concentricity

● Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection,  international brand oil pipe

● Components are made by laser cutting machine or other CNC equipment

● Alloy solid steel X structure, good rust resistance and not easy to deformation

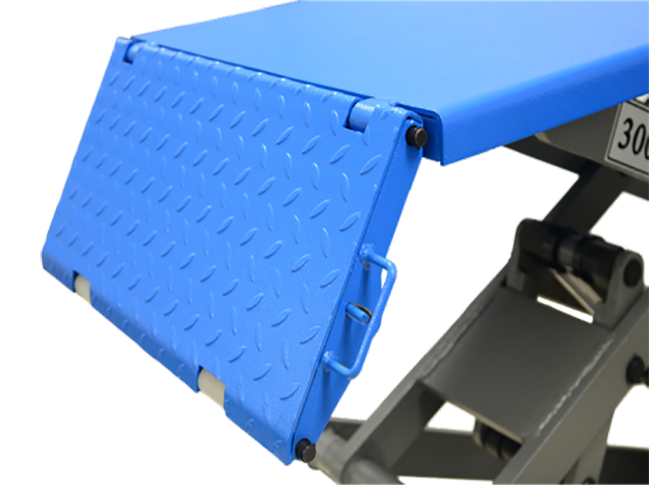

● Ramp as extension suitable for different length of chasis(30CBL).

● Shot blasting and high temperature baking powder coated surface finish

● Wear-resisting bearings

● Optional infra-red electronic leveling sensor, optional anti presser foot device


SHL-Y-J-36CBL Ultrathin Small Platform Scissor Lift(Heavy Duty Type)


High precision laser cutting
High precision laser cutting

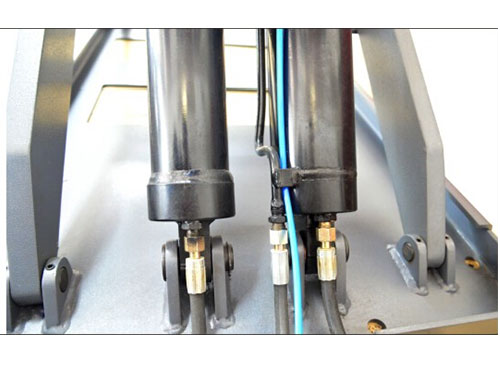

Oil pipe broken protective device
Oil pipe broken protective de...

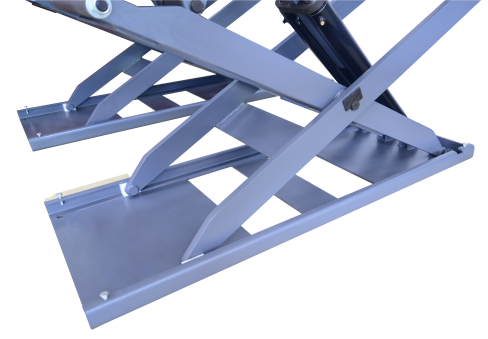

Solid plate X construction  Pnumatic mechanical safety
Solid plate X construction ...
Japanese oil seals
Japanese oil seals
