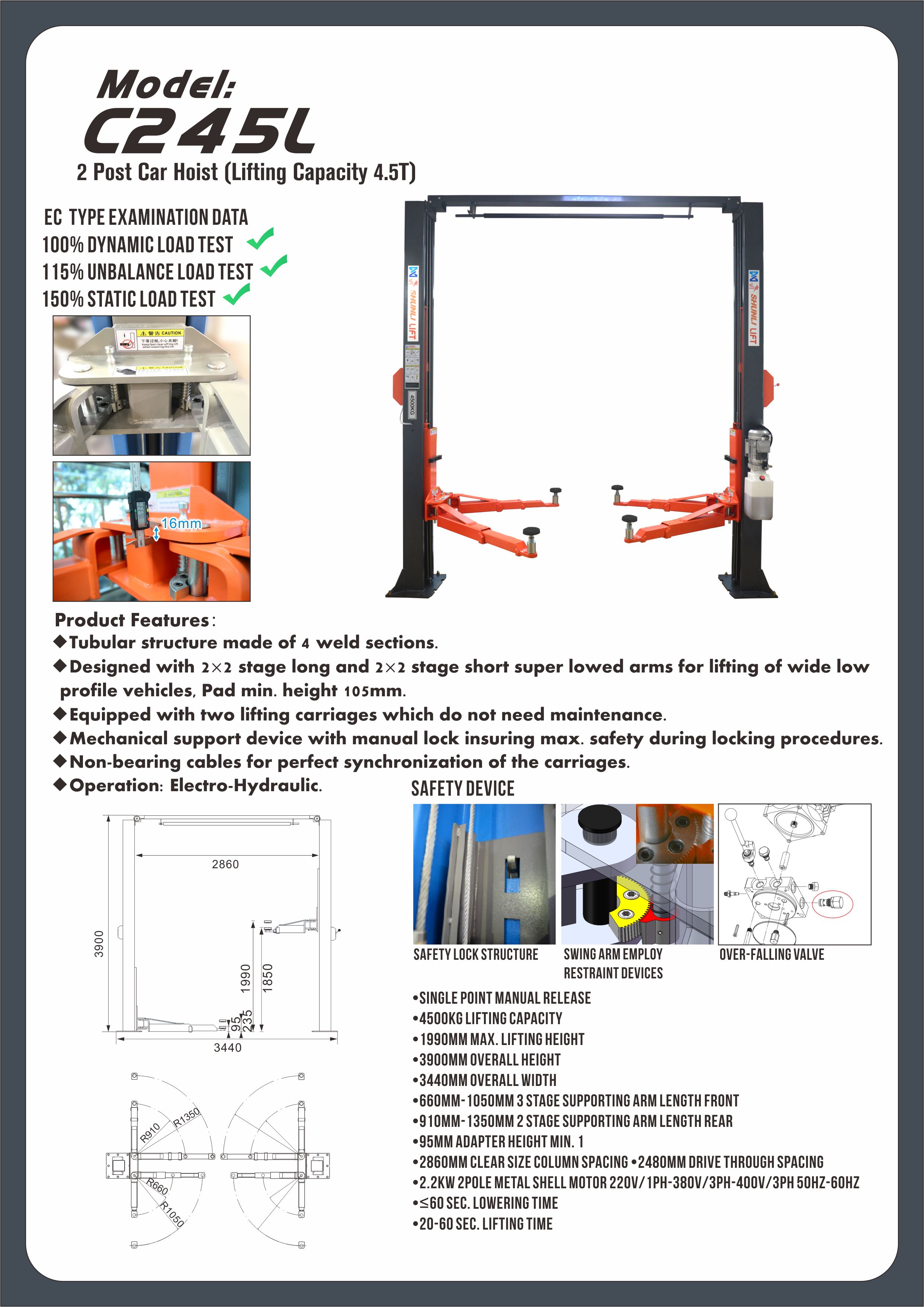

•Single Point Manual Release
•4500kg Lifting Capacity
•1990mm Max. Lifting Height
•3900mm Overall height
•3440mm Overall Width
•660mm-1050mm 3 Stage Supporting Arm Length Front
•910mm-1350mm 2 Stage Supporting Arm Length Rear
•95mm Adapter Height Min.
•2860mm Clear Size Column Spacing •2480mm Drive Through Spacing
•2.2kw 2Pole Metal Shell Motor 220V/1PH-380V/3PH-400V/3PH 50HZ-60HZ
•≤60 Sec. Lowering Time
•20-60 Sec. Lifting Time
