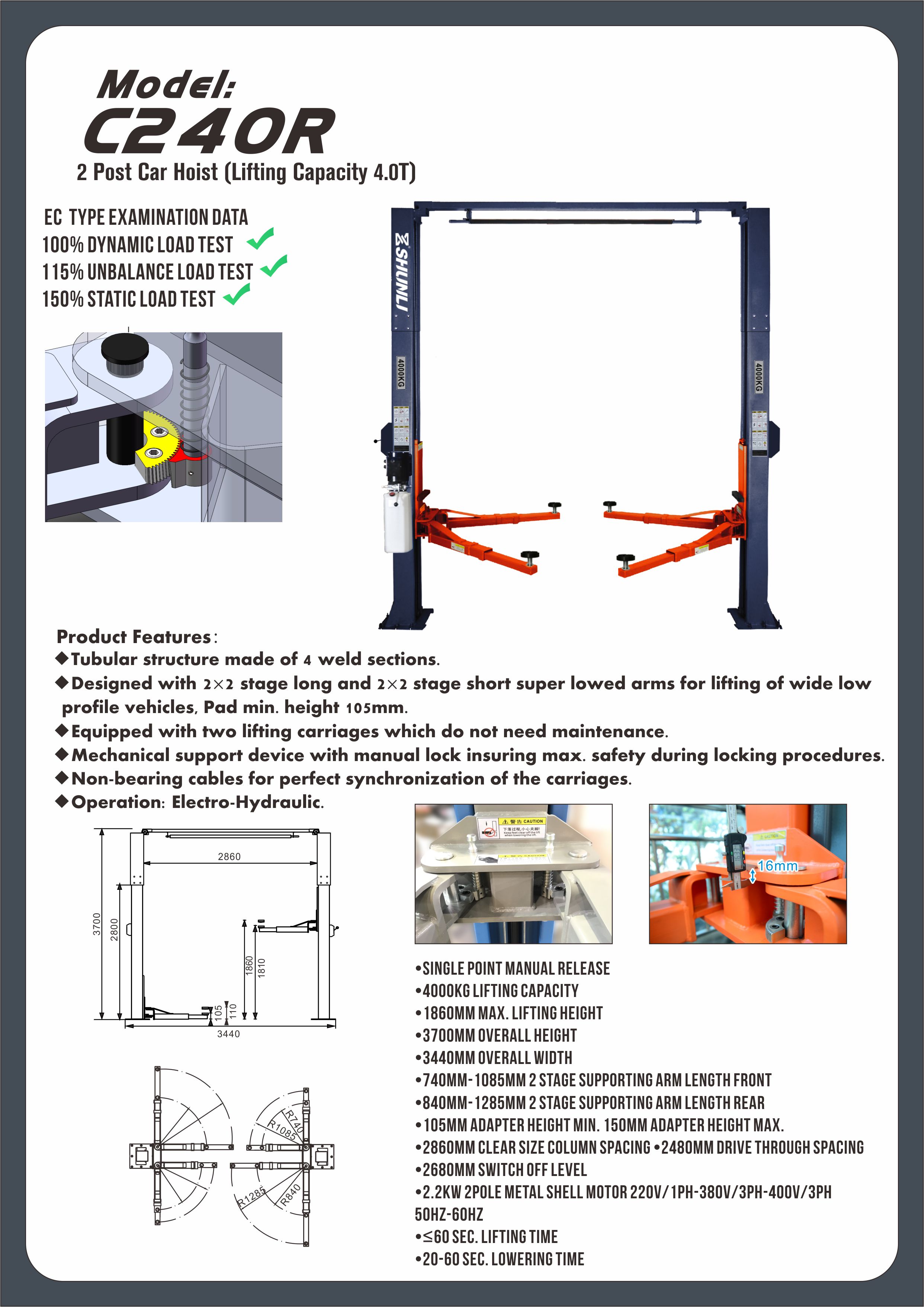

Product Features:
•Single Point Manual Release•4000kg Lifting Capacity
•1860mm Max. Lifting Height
•3700mm Overall height
•3440mm Overall Width
•740mm-1085mm 2 Stage Supporting Arm Length Front
•840mm-1285mm 2 Stage Supporting Arm Length Rear
•105mm Adapter Height Min. 150mm Adapter Height Max.
•2860mm Clear Size Column Spacing •2480mm Drive Through Spacing
•2680mm Switch Off Level
•2.2kw 2Pole Metal Shell Motor 220V/1PH-380V/3PH-400V/3PH 50HZ-60HZ
•≤60 Sec. Lifting Time
•20-60 Sec. Lowering Time
